Crane rail track
Crane rail track

Crane rail track

Benefit from first-class driving characteristics and quick assembly without straightening

Flat and square bright steel solutions for your crane

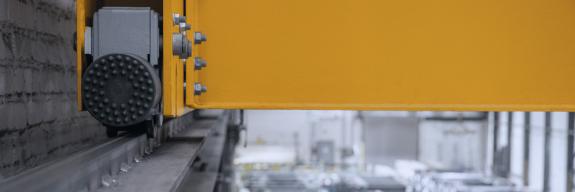

Crane rail tracks play a crucial role in industry when it comes to the efficient and precise transportation of heavy loads. The crane rail track made by Andernach & Bleck offers a number of special advantages that set it apart from other solutions, both during installation and throughout its service life.

Our crane rail track is made of shot-blasted, straightened material and can be installed without time-consuming straightening. This results in considerable time savings during installation.

While the tracks of such systems normally have to be degreased to prevent the wheels from slipping, this time-consuming step is not necessary with the crane rail track made by Andernach & Bleck. Our crane rail is manufactured directly from grease-free material. It is also characterized by excellent weldability, reduced run-in times for the wheels and very good running properties. The wheelsets run quietly and smoothly, which increases their running performance and durability, not least because of the rounded edges.

Available dimensions e.g.:

  • 50 x 30 mm
  • 50 x 40 mm
  • 60 x 40 mm
  • 60 x 60 mm
  • 70 x 70 mm

With our standard dimensions, you can rely on short delivery times.

Special dimensions

We are pleased to manufacture special dimensions for you on request.


Length:min. 6000 mm
Deviation of straightness:max. 1 mm/m
Weldability:similar to S355 max. CEV 0,47
Tolerance:IT11 (± possible)

Head joint and inclined joint available

Head joint
Head joint
Inclined joint
Inclined joint
